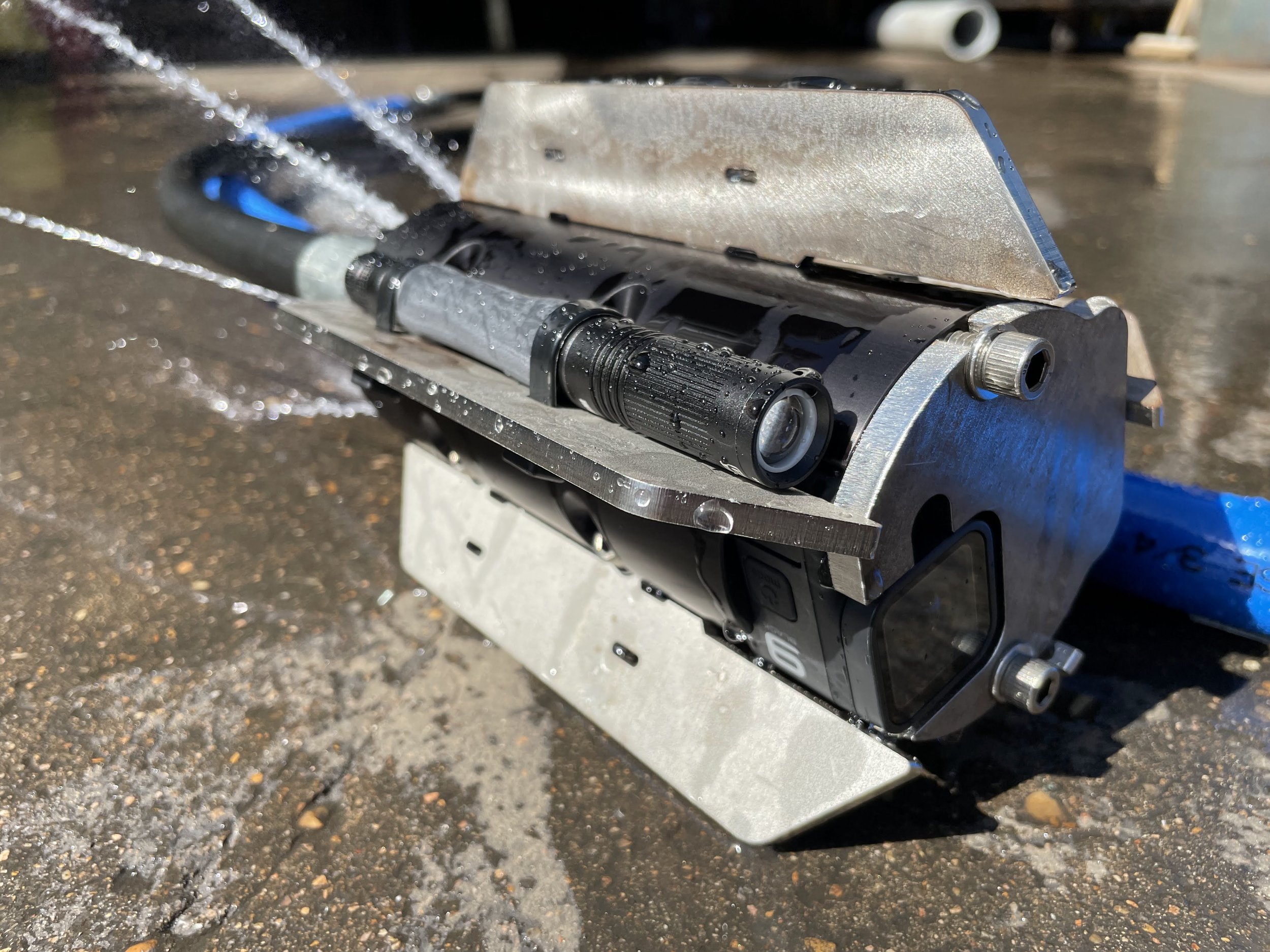

Introducing the Red Dawg Scout Lite Jet Camera

In our latest stride to keep operators as equipped as possible we are proud to present the Scout Lite. This is the absolute simplest and easiest jet camera to operate in the industry. We have carefully planned features that will ensure this system be a very valuable tool for jet/combo operators. This system enables operators to get as much as 10,000 ft./day that can be used to meet your municipalities CMOM requirements. Why wait for your camera truck? Drop the Scout in and get the answer your guys need to solve the problem.

How it Works

The Scout Lite Jet Camera was designed to work with any jetter in the marketplace with 18 GPM or more. Anyone needing to get eyes inside a mainline to diagnose an issue needs this capability. Don’t bring your camera van to the jetter, let your jetter crews get solid information by safely videoing the problem.

Operators simply install this assembly on the end of their jet hose, just like any other nozzle, and their ready to capture video. The camera can be controlled with a remote, smartphone app, or simply their voice. Video can be shared as easily as any video on your device.

Benefits

  • Jetter and Combo operators can find out exactly what the issue is using a jet camera.

  • Easily keep up with CMOM requirements with jet camera footage

  • Easily gauge pipe condition with a fast and shareable inspection

  • No need to interrupt your programmed inspection van, let the jetter guys find out what is wrong in that line.

  • Keep capture cost low with a jet camera

  • Keep your gear out of the repair shop, Camera can be swapped in under 60 seconds.

  • Manage all video on an iOS device.

Demonstration Videos

Features

Anodized Aluminum Body

Replaceable Fin Plates (for different size lines)

Action-camera based video capture

Superior camera protection

LED Pen lighting system

Replaceable Rear Inserts (Standard 1/8” or EST Insert Upgrade)

Pen Light driven led lighting

The lighting on our Scout Lite is as simple as it gets. Two LED pen lights are protected and secured to the body assembly for simple replacement when needed. The lights feature a IP67 waterproof rating to ensure they stay dry. When the batteries start to fade, simply install a fresh set of AAA batteries (2-per light). Lights are secured by a simple zip tie system.



Action Camera Video Capture

This outstanding platform has the benefits of remote review of all videos stored on the camera and doesn't require operators to remove the SD card to review footage. If something goes wrong with your camera, simply replace the camera and keep going on. Crews don't waste time for costly factory repairs to be completed.

Camera Specs:

  • 4K Video Capable or 1080p Stabilized (or 1080/120)

  • Waterproof Case

  • Voice Controlled (if turned on)

  • WIFI connectivity (and app controlled)

  • Optional Remote control pendant

  • Horizon Leveling!



Frequently Asked Questions:

Q: Will I be able to view the video live going down the pipe?

A: Unfortunately, the live video signal is lost relatively quickly as the Scout is sent down the line therefore there is no live video available. By taking a low-tech mindset, we are able to make the Scout durable and more affordable for our users.

Q: What kind of warranty do I get on the Scout?

A: Please refer to the warranty statement located on page 15

Q: The LED light on my Scout won’t turn on…

A: If replacing the batteries does not resolve this, please reach out to your local dealer for service.

Q: Is the light ring and battery pack replaceable?

A: Yes, both the LED light ring and battery pack’s are replaceable.

Q: What kind of tablet do I need?

A: Any Apple smartphone or tablet that can download the needed apps.

Q: What size pipe can I run the Scout in?

A: Right now the Scout is intended for 6” to 14” lines. Anything beyond 14 is currently untested.

Q: Is the camera self-leveling?

A: Nope. We don’t intend to make this system self-leveling. It defeats the purpose of being so simple. We agree it would be a nice feature, but it would add many more components that might fail. We can however level the video after capture now via Horizon leveling.

Q: Will this work with my Jet Truck or Combo Truck?

A: Yes. As long as your water system has 18-80 GPM it will work. There is no additional hardware required.

Q: Can I use this footage towards my C.M.O.M. requirements?

A: Yes. Many municipalities across the country use a jet camera to obtain footage towards their maintenance requirements.

Notice: GoPro and Quik are trademarked names and are property of their respective owners.
